Unit 2 - Algorithm Analysis; Big-O Notation

Table of Contents

1. Overview
2. Algorithm Analysis
3. Big-O Notation
4. Anagram Detection
5. Performance of Python Collections

2.1. Overview

Now that we've gotten some Python syntax figured out, let's move on to the main topics in this course: using algorithms and Abstract Data Types (ADTs) to solve problems.

In this short unit, we'll be discussing the general idea behind algorithms, and figuring out how we can both predict and measure their efficiency.

• Why analyze our algorithms?
• Big-O notation describes execution time
• Big-O re: Python lists, dictionaries

Let's get started.

2.2. Algorithm Analysis

Which program is faster? Which program uses less memory? What algorithm strategies make one program better than another?

Computer scientists study algorithms, which are often presented mathematically rather than programmatically. Computer scientists also study what types of problems are solvable, and what problems may be unsolvable... and whether or not we can even know if a type of problem can be known to be unsolvable.

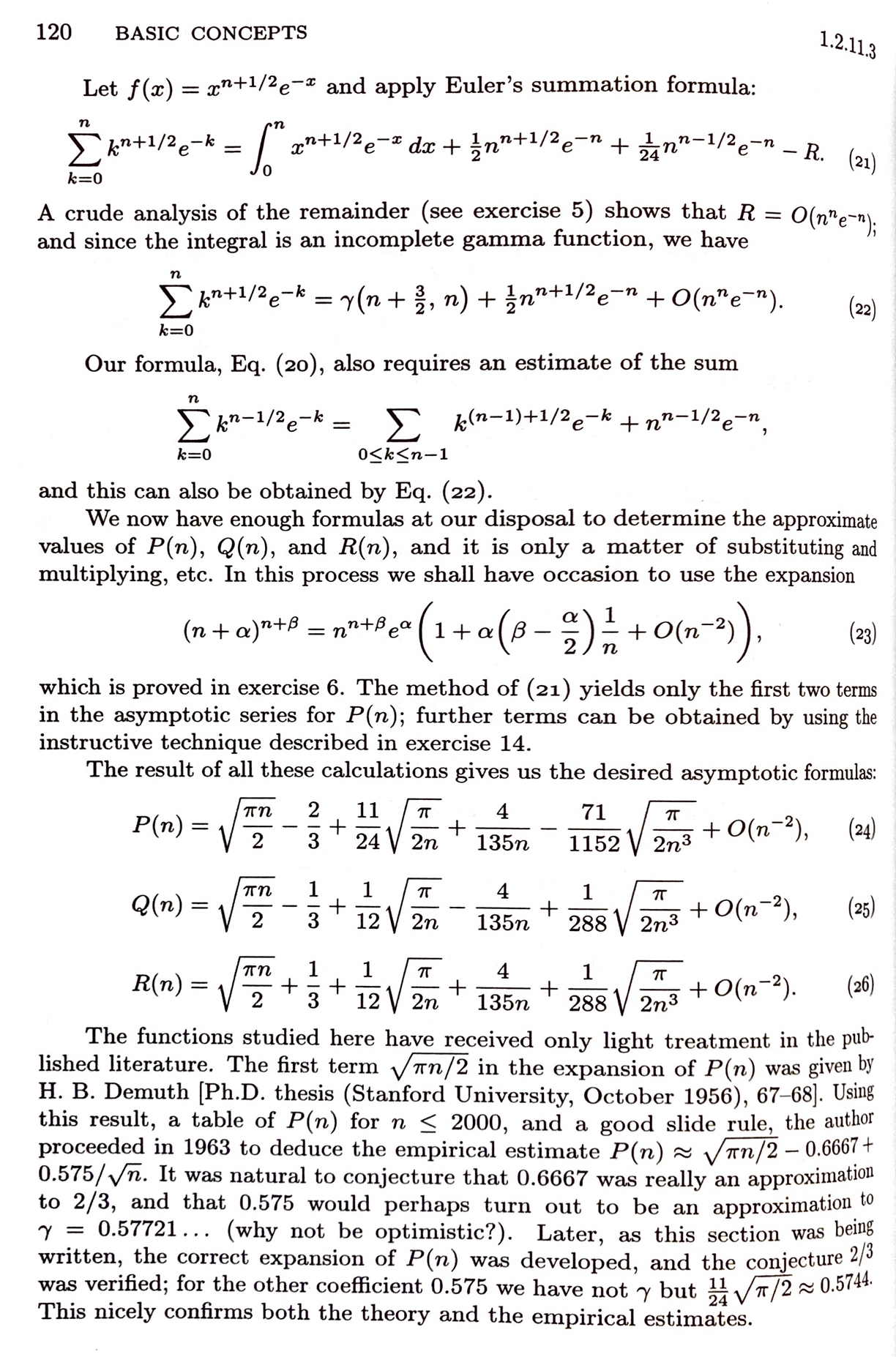

If you go into Computer Science, you may very well find yourself the eventual owner of one of the classics in the field, Donald E. Knuth's The Art of Computer Programming. Volume 1 of that series is entitled Fundamental Algorithms, and here's what a page from that text looks like →

Computer science is a math thing.

There are different algorithms that can be used to solve any given problem, and for each of these, there are different programs that may be implemented for the same algorithm.

for p in d:
    if p.em():
        s(p)

for person in directory:
    if person.has_email_address():
        send_email(person)

In this course, we certainly want readable code. Our primary goal is examining algorithms and how efficient they are in terms of resources used, both time and memory (and that goal, of course, will be served by having readable code, even if the algorithm itself doesn't require it).

Let's write a program to figure out how long it takes to run an algorithm on your computer.

So we know how quickly your computer can run the program. But your computer's speed is not our primary concern here.

Let's write a new program, and look at how the time it takes to run compares with the size of the task it has to do.

2.3. Big-O Notation

We can determine the efficiency of an algorithm in two ways:

1. Empirically, by writing it, running a series of tests on it, and measuring the time each one takes to run, or
2. Theoretically, by considering the number of steps involved in running the algorithm, where a "step" is usually an assignment statement. It takes time for a computer to assign a value to a variable, so if we count the number of times that happens, we'll have a good measure of how much time it takes the computer to complete the task.

2.3.1. Measuring T(n)

One way of determining T(n) is simply to write a program and measure it on your computer.

Let's try it.

sum = 0
for i in range(1, n + 1):
    sum = sum + n

2.3.2. Analyzing T(n)

A second approach to determining T(n) is a more thorough, formal analysis.

As mentioned above, if the most "time-expensive" instruction is assigning a value into memory, we can get a very good measure of how efficient a program is by counting up how many times an assignment instruction is executed.

Let's take a look at the summation algorithm we wrote above.

sum = 0
for i in range(1, n + 1):
    sum = sum + n

for row in range(n):
    for col in range(n):
        table[col][row] = col * row

2.3.3. Big-O notation

While the time function T(n) is occasionally useful, computer scientists typically use a different measure of efficiency, called "big-O notation." The "O" refers to the order of the time-based polynomial function that is dominant in determining the execution time.

If we're trying to determine the efficiency of T(n) = 2n + 1, you can see that as n gets very large, the value 1 becomes less and less significant in the time. Even the factor 2 is a constant factor, so it doesn't change with the size of n. In an effort to simplify the analysis of this function, then, the computer scientist would classify the function as O(n). We might say "The running time for this algorithm is O(n)," meaning that the time increases linearly with the size of the data set.

The multiplication table took time T(n) = 2n2 + n. The order of this function is two, so the big-O representation of this algorithm would be O(n2).

T(n) = 2 + (n * (3*n)) + (4 * n) + 3

In some cases, an algorithm's performance may depend upon the nature of the specific data given to it: a sorting algorithm, for example, may be much faster if the data is already sorted. Other sorts may take the same amounbt of time regardless of the order, and some might even be worse if the data is already sorted. You may see references to an worst-case performance or an average performance when looking at big-O values. In most cases in this course, we'll be referring to average performance.

2.3.4. Common Big-O functions

Here are some of the more common big-O functions, listed in order of decreasing efficiency.

In conversation, one typically says "big oh of log n", or "big oh of n-squared", or simply "n-squared performance" or "has constant performance."

We'll take some time to look at these different orders as we work our way through the course.

2.4 Anagram Detection

An anagram of a word consists of the letters of the original word rearranged into a different order.

The word "cat" is an anagram of "act", and the words "genuine" and "ingenue" are anagrams of each other. "catt" and "cat" are not anagrams of each other, nor are "catt" and "ccat". The same letters and the same number of those letters must appear in both anagrams.

word1 = "tyvcunaazhbeaqjolinucylllztjydjvdhfhsczdayrrmxkmhizpodhwkxlilkypllwqplothnysaoxgpmgatwtjqhdzzpzwkeed"
word2 = "hljyzcqxmlmtlznnkjulacpszlarehpzemnkojdvowtpyawliaphyodtdldqhkpjvobigyukethraxhylhwfzdzadwyqgtcsizlx"

2.4.1. Anagram Detection Strategies

The following strategies are all valid for identifying anagrams.

1. Checking off letters one-by-one
   Go through word1, take each letter found, and look through word2, checking off the found letters in word2 as you go.
2. Sort and Compare
   Sort the letters in word1 and word2 and compare the two words that result.
3. Brute Force
   Write all the possible combinations of the letters in word1 and see if word2 matches any of them.
4. Count and Compare
   Count the frequency of each letter in word1, and compare it to the frequencies of the letters in word2.

The real question, of course, is which strategy do you think might be most efficient?

2.5. Performance of Python Operations

When creating a new programming language, decisions have to be made in how the features of that language will be implemented.

Will that language have strict or dynamic data typing? Will int values be of a fixed size or will they be dynamically implemented? Etc.

Sometimes the language will have multiple ways of accomplishing something—creating a list of values, for example—in which case it may be helpful for you to know which strategy will be most efficient for a given purpose.

2.5.1. Creating a list of values

Which of these four strategies is best for creating a list of int values 0-999? How could we figure which one is fastest?

# strategy 1
l = []
for i in range(1000):
    l = l + [i]         # concatenates a list to another list

# strategy 2
l = []
for i in range(1000):
    l.append(i)         # classic appending to a list

# strategy 3
l = [i for i in range(1000)]    # list comprehension strategy, functional style

# strategy 4
l = list(range(1000))           # using Python's list and range operators

Let's write a program to do try each of these strategies and compare the results.

Here's a start:

#!/usr/bin/env python3

"""
listfuns.py
This program compares the performance of the various
list creation strategies.
Miller & Ranum, Ch 2
@author Richard White
@version 2017-02-21
"""

import time

# strategy 1
def test1():
    l = []
    for i in range(1000):
        l = l + [i]

# strategy 2
def test2():
    l = []
    for i in range(1000):
        l.append(i)

# strategy 3
def test3():
    l = [i for i in range(1000)]

# strategy 4
def test4():
    l = list(range(1000))


def main():
    NUM_OF_TESTS = 1000

    # Testing strategy 1
    total_time = 0
    for i in range(NUM_OF_TESTS):
        start = time.time()
        test1()
        stop = time.time()
        total_time += stop - start
    print("test1", total_time / NUM_OF_TESTS)

    # Testing strategy 2
    total_time = 0
    for i in range(NUM_OF_TESTS):
        start = time.time()
        test2()
        stop = time.time()
        total_time += stop - start
    print("test2", total_time / NUM_OF_TESTS)


if __name__ == "__main__":
    main()

2.5.2. Time vs. Performance

In the problem above we timed how long each strategy took, but we haven't actually determined the performance based on increasing size.

Let's write a program to see what the performance is of the first list creation strategy, the concatenation strategy.

#!/usr/bin/env python3

"""
performance_test1.py
This program analyzes the performance of the
list concatenation operation.
@author Richard White
@version 2017-02-21
"""

import time

def test1(num_of_values):
    """Creates a list of the specified number of values
    by concatenating lists.
    """
    l = []
    for i in range(num_of_values):
        l = l + [i]

def main():
    LOWERLIMIT = 1000
    UPPERLIMIT = 10000
    NUM_OF_TESTS = 10

    print("Num of tests","Execution time")              # prints results on monitor
    outfile = open("list_analysis_results.csv","w")     # stores results in file
    outfile.write("Num of tests,Execution time\n")

    for i in range(LOWERLIMIT, UPPERLIMIT, int((UPPERLIMIT - LOWERLIMIT) / NUM_OF_TESTS)):
        start = time.time()
        test1(i)
        stop = time.time()
        print(str(i) + "\t" + str(stop - start))        # results on monitor
        outfile.write(str(i) + "," + str(stop - start) + "\n")      # store in file

    outfile.close()             # close file once tests are done

if __name__ == "__main__":
    main()

2.5.3. Data Type comparison: list vs dict

Python includes two types of data types that allow for working with collections of data: the list and the dict. (There are other collection types as well.)

Lists are good for keeping track of data that needs to have its order maintained, while dictionaries don't have a preferred order: values in a dictionary are identified by their keys.

Again, there are trade-offs between the two types of collection data, and which one you choose to use in a program will be determined by what your needs are.

Both lists and dictionaries allow for adding items to a collection:

l = []
l.append(random.randrange(1000))

d = {}
d[random.randrange(1000)] = 1
# the line above adds a dictionary key with a value of 1,
# which we're not really using in this analysis

... and both lists and dictionaries allow for items to be removed from a collection:

l.remove(7)
# removes the value 7 from the list (assuming it exists)

del d[7]
# removes the value 7 from the dict (assuming it exists)

Which is faster? Removing items from a dictionary, or removing items from a list?
