Unit 4 - Sorting and Searching Algorithms

Table of Contents

1. Intro to Algorithms; Selection Sort
2. BubbleSort; Big-O notation
3. Linear Search
4. Binary Search
5. Nested Loops
6. Debugging
7. Content Review

4.0. Introduction to Algorithms; Selection Sort

4.0.0. Overview

We've spent the first weeks of this class learning a little about Python's basic data types (int, float, str), Python's decision-making control structures (if, if-else, if-elif-else), Python's looping control structures (while, for), and the list data type.

Now let's learn how to use those tools to actually build some working algorithms.

4.1. Computational Thinking, Problem Solving, and Algorithms

We've been using the principles of computational thinking almost every day in this course as we learn how to think about problems in a way that will help us better understand how to write code that will solve the problem.

What algorithms have we developed in here? The Sieve of Eratosthenes is one example. Based on the idea that prime numbers are numbers that don't have any multiples in them, we created a list of numbers, and starting at number 2 (the lowest prime), we identified that as a prime, and took out all the other numbers on the list that were multiples of that. Then we moved up to number 3, identified that as a prime, and took out the multiples of that number as well, and so on. That strategy, that recipe, that algorithm is one way of creating a list of prime numbers.

An algorithm may be expressed as a series of instructions, as above. It might be a numbered list of items in a procedure. It might be encoded as a flowchart, or written as pseudocode. For an algorithm to be expressed as code, of course, it eventually has to get written in a form that the computer will understand.

Show/hide Sieve of Eratosthenes

4.1.1. Sorting and Searching

A classic way to learn about algorithms is to examine how one performs two very important computer operations: sorting, and searching.

We'll begin with the Selection Sort.

4.1.2. The Selection Sort algorithm

Let's write a Selection Sort algorithm in Python.

4.1.3. Refactoring

Once you've written the basic program, let's refactor it.

You've probably written this program with a single main() function running the sorting process. Let's refactor your Selection Sort.

In this case, let's just split the program up into three logical pieces. We'll have:

1. a main() function that establishes the initial values that our program will need: how many values we're going to be sorting, and what the range of those values are, for example.
2. a create_random_values() function that is responsible for creating the list of random values, and
3. a sort() function that actually sorts the values in our list.

4.1.4. Timing your program

Once the basic program is working, proceed through the following modifications of the program so that we can examine it in more detail.

4.2. Bubblesort, and Big-O Notation

4.2.0. Overview

The SelectionSort is one way of working through a list of items and putting them in order. Are there any other ways? Other strategies that we could use? Other algorithms that we could program?

And are some of the strategies faster than other, or more efficient? How would we know? You're running a Mac, I'm running a PC, that guy is running Windows 10, that girl is running Linux... We can't just time how fast the programs work, can we? That would measure the processing speed, and not the algorithm speed.

How do we determine which algorithm is better when we're all running it on different computers?

Let's find out!

4.2.1. The Bubble Sort algorithm

Let's write a BubbleSort algorithm in Python.

Once the basic program is working, apply modifications to the program as you did above to determine how quickly your program can perform its sorting.

4.2.2. Big-O notation

Do you have any sense of which of these programs is better, and under what conditions? Which one is faster? Which one is more efficient?

One aspect of computer science is determining the relationship between the amount of data we feed an algorithm and how quickly that algorithm runs. Although computers are able to perform individual instructions very quickly, programs that require the execution of thousands, millions, and billions of instructions are obviously going to take longer, and execution time becomes a concern.

Which sorting algorithm above performed a sort of 20 numbers more quickly? Which algorithm performed a sort of 10,000 numbers more quickly?

Does the performance of these algorithms vary under certain conditions? What if the list to be sorted is already partly sorted? What if it's completely reversed? Does this affect the time it takes for the algorithm to work?

There are three ways that we can determine the O-value of an algorithm.

1. We can construct a mathematical proof of its operation parameters.
2. We can do a quick-and-dirty analysis on a simplified version of the algorithm.
3. We can conduct experiments that actually collect time measurements of the algorithm's operation.

Because we've already built a timer into our programs above, let's look at some data collected for a Selection Sort algorithm working to sort a random list of words.

All times were collected using a Selection Sort running in Python 2.7.2 on an Apple Macbook Pro with a 2.66GHz Intel Core i7 dual core processor.

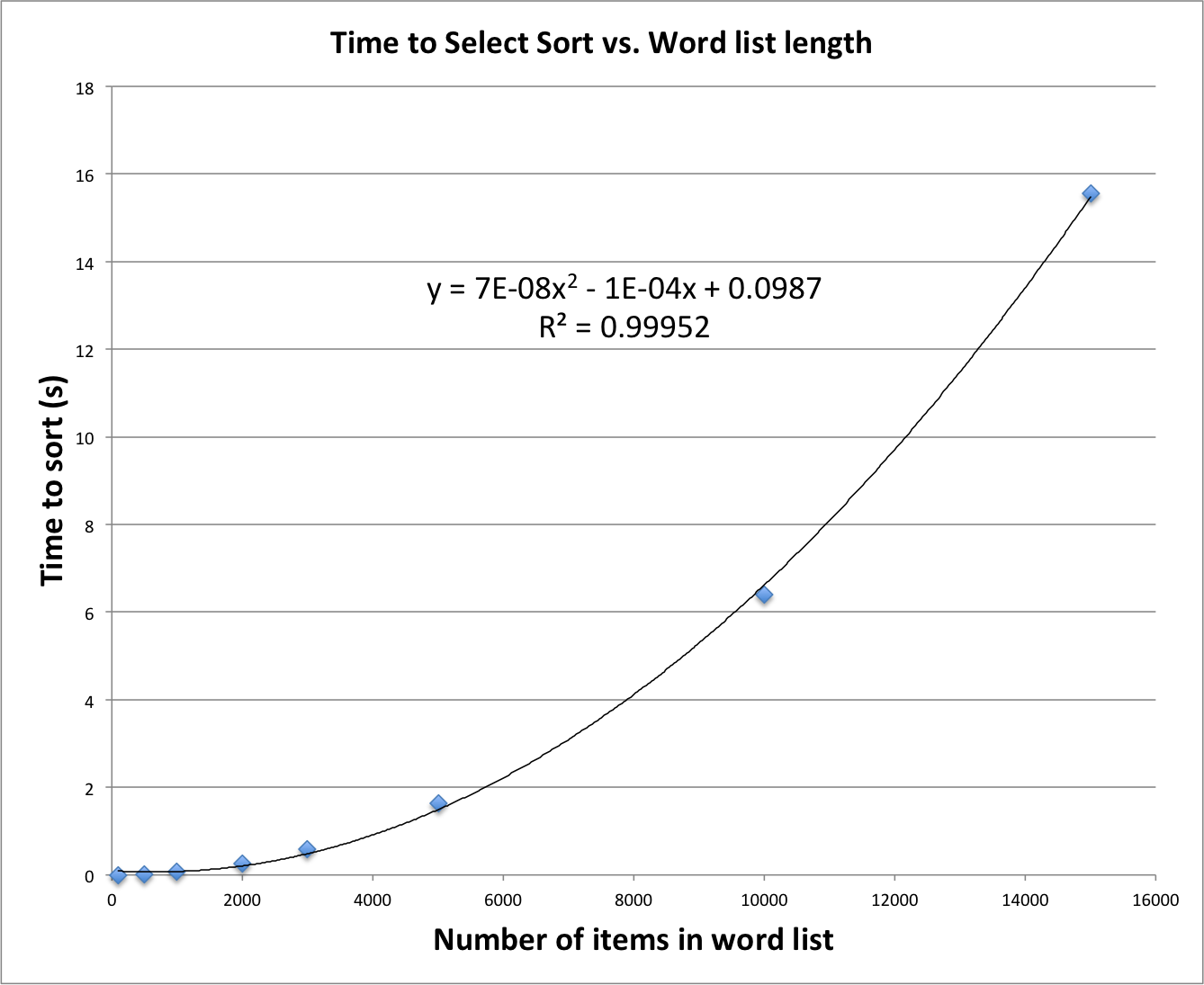

And here's a graph of those list sizes and times:

Notice that the data points line up almost perfectly along a quadratic curve, clearly indicating that Selection Sort is an O(n²) algorithm.

4.3. Linear Search

4.3.0. Overview

A linear search is just what it sounds like: given a list of values (sorted or unsorted), go through the list one item at a time, starting at the beginning, and checking each value in turn until you either:

1. Find the item on the list, in which case you indicate its location, or
2. You go through the entire list and don't find the number, in which case you indicate that the search term has not been found on the list.

Why would we want to do this? It turns out that knowing the location of an item in a list is an important element in more complex algorithms and problems.

A linear search is not usually the most efficient means of finding an item in a list, but it's a good start for us at this point.

Let's see how to write one.

4.4. Binary Search

4.4.0. Overview

Sorting is one classic context for exploring different types of algorithms. You might be interested to know that Python actually provides a .sort() method that works on lists. It's built in to the language, and uses a Quicksort algorithm to sort any list you give it.

Pretty cool!

The next context for examining algorithms is the process of searching. Given a list of items, how do you go about finding an item on the list?

Imagine the various collections of things you have in your life: your music (if you have MP3s or CDs), your photos on your cellphone, your files on your computer, your notes for class... How do you look through those collections of items to find stuff? Do you keep those things ordered so that you can easily find one item in the collection, or do you have them piled up in various folders/piles?

Computers need to be able to find stuff. Let's see how we can search for things.

4.4.1. Searching

Okay, so we've got our lists of items sorted. How do you quickly go about finding something on the list? Just flipping through the list sequentially, starting with the first item and continuing until you get to the end doesn't seem very efficient, especially if you've got a very long list. This is a legitimate search strategy—it's called a Linear Search—but it's probably not the one we'd want to use here.

The Binary Search can be tricky to implement. Challenges include identifying the middle of a list of an even number of items, and keeping track of upper- and lower-bounds of the search space.

There are also more sophisticated concerns, like "what happens if you have a billion items to search through?" Large lists like this can tax an algorithm, and even the experts can get tripped up.

We'll keep things simple in here.

4.4.2 Implementing BinarySearch

Once you think you know how a binary search works, take a few moments to see if you can write and debug a Python version of it.

4.5. Nested Loops

4.5.0. Overview

Sorting and Searching algorithms really give you a chance to get some practice with one-dimensional lists. The next logical step is to look at a "list of lists"—a two-dimensional array.

4.5.1. Basic nested loops

You may recall that a basic nested loops consists of a loop inside a loop. One example would be using variables for ones and tens to count from 0 0 to 9 9:

Another example is the Number Guessing Game. We had an inner loop that allowed the user to repeatedly guess a secret number, and an outer loop that asked them if they wanted to play again.

4.5.2. Lists of lists

We've been able to keep track of a list of data, what you might call a row of data:

A list can keep track of any kind of information: numbers, strings, ... and even lists. This "row" of data could hold three lists like this:

Let's make sure we know how we can refer to these values. If lst[1] is [5,6,7,8], what is lst[1][2] ?

It's the item index 2, in [5,6,7,8], the number 7.

In fact, we can refer to any element in the list-of-lists by referring to the index of the main list, and then the index of the element in the "sub-list."

4.5.3. Re-thinking Lists of Lists

The list of lists we've been looking at is this one:

This is fine, but you can also write the same list like this:

When we arrange the lists like this, it's easy to think of the big list of 3 items as representing three rows, and the sub-lists in each row as representing four columns of data.

And that's exactly how we're going to use them.

4.5.4. Setting up a list-of-lists in Python

Here's one way to fill up a list of lists, assuming we want it to be height rows high and width cols across:

4.5.5. Printing out a list-of-lists in Python

Once you've got a list of lists all set up, you can print it all out using something like this:

4.6. Debugging

From your very first program you know how easy it is to make mistakes when trying to get the computer to do something for you.

You may already have developed some sense of what kind of strategy you can use to figure out what's not working. Nevertheless, given that we spend so much of our time debugging, double-check that you're being as efficient as possible when fixing your code.

Here's how.

4.6.1. Debugging Strategies

Our programs have started to get pretty complex... and they're only going to get more complex from here on out. It's useful to have a few tricks that you can use when writing and debugging your program. You'll quickly learn the advantages of each of these as our problems become more difficult.

Coding and Debugging Strategies

• Top-Down Design
  Begin writing your program at the top-level, and then work your way down to the finer parts. We did this with our secretcode program when we wrote the menu part first, and got that working, before we proceeded to working on what each menu item actually did.
• Bottom-Up Design
  Begin writing your program at the lowest-level—get one small part of the program to work first—and once that's working, start working your way up to the larger structure of the big program. In the craps program one of the very first things we did was figure out how to roll the dice and add them up. After that, we continued building the rest of the larger program that used that dice-rolling code.
• "Break Points" in your code
  Often, despite your best efforts, you'll find that your program isn't behaving as you expected it would. In these cases, it's a good idea to find out what's happening in your program by adding break points.

Integrated Development Environments (IDEs) provide a programmer with the capability to create breakpoints automatically, but because we're coding "by hand," you'll need to write your own breakpoints. Here's how you do that:

1. Insert a print statement to indicate the status of variables that you're concerned about:
   print("DEBUG: a =",a,"and b=",b) print(locals()) # an easier, fancier way of doing this in Python
2. Insert an input statement so that the program stops to wait for user input:
   print("DEBUG: a =",a,"and b=",b) print(locals()) # an easier, fancier way of doing this in Python pause = input()

We don't actually care about any input here, but this statement has the effect of pausing the program for a moment so that we can read the status of the variables, and hopefully figure out what might be causing the program to misbehave.

Once the problem has been solved, you can comment out or remove these statements entirely so that only the clean code is in your program.

4.6.2. Example of Debugging: Binary Search

If I'm writing the Binary Search program described above, I might think I have a pretty good idea of how my program is working, and yet... I'm not getting the right results. You don't need to know about the Binary Search algorithm to understand the point here. Just look at my (not working yet) code initially:

This version of the program is producing output but the results are incorrect. How can I go about diagnosing what's going wrong with my program?

Here's a new version of the program, with additional print statements and a pause built in so I can see what's going on. The breakpoint code is highlighted in bold.

All those extra print statements slow down the program, and having to hit the [Enter] key every time the loop is definitely not a feature that I'll want in my final version. But in the meantime, I can use the breakpoint—the print statements along with the pause—to let me examine the inner workings of the program and figure out what's going on. (It turns out that I should have said if upper < lower, not if upper == lower.) And once I've got it working, I'll either remove those statements completely, or just comment them out in case I think I might need to use them again later on when I add a new feature to the program.

4.7. Review of the First Quarter

This just about brings us to the end of some of our major work in learning how to program. At this point you know the major strategies and structures for writing instructions in Python.

Here's a quick summary of what we've covered already in just the first few weeks of study.

There is a lot more to programming in Python than this, but we've made a very good start, and we're already in a position to write some complex and powerful programs.
